SST GEOMETRY [metric]
|A. Seat Tube (C-T)||380||380||410.5||425||450|
|B. Effective Top Tube||580||596||612.5||637||668|
|C. BB Drop||40F/21R||30||30||30||30|
|D. Head Tube Angle||64.5°||65.5°||65.5°||65.5°||65.5°|
|E. Head Tube Length||90||95||100||110||120|
|F. Effective Seat Tube Angle||75°||76°||76°||76°||76°|
|H. Chain Stay Length||435||435||435||435||435|
|I. Front Center||739||756||773||815.6||832|
|M. Shock Eye to Eye (Trunnion)||185x50||185x50||185x50||185x50||185x50|
- S-XL measurements with 140mm fork; 551mm A-C, 44mm offset
- XS measurements with 29F/27.5R; 130mm fork; 541mm A-C, 44mm offset
- Rear Shock 185x50mm MAX
If you're like us and you measure the distance of your ride by the number of beers you're carrying, then the SST likes 3 beer rides.
Rear shock is not included with frame only options.
Dimensions: 185x50mm trunnion mount, 8x30mm lower hardware. Email email@example.com with questions or to order rear shock.
NOTE: MAX SHOCK STROKE 50mm

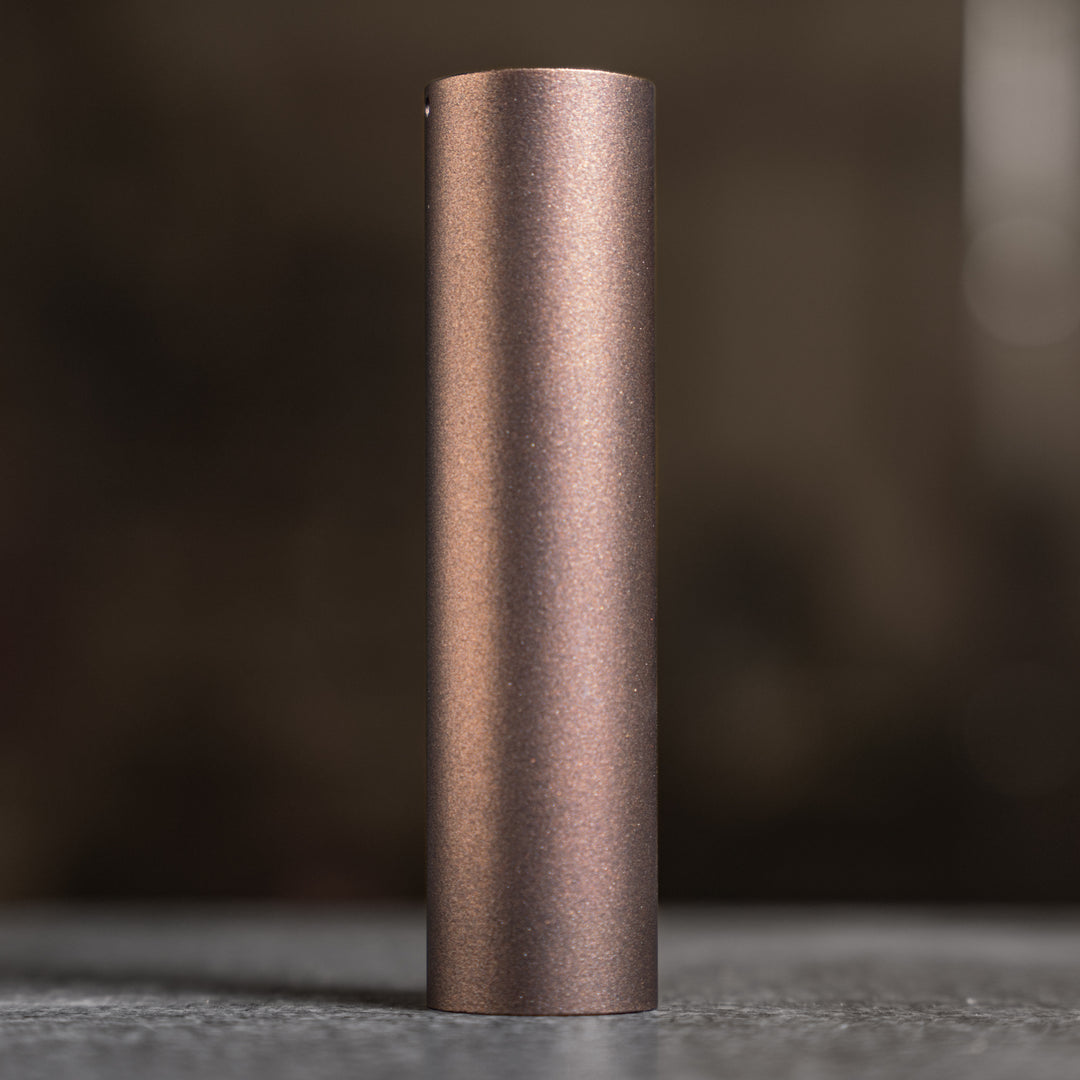

For $350 and an slight increase in lead time we can spray whatever you like. Hit the "Custom Color" button when you order and shoot us an email to discuss options!
Come ride the stock geo and drink a beer with us after your demo. If you're 6'9" and the XL isn't big enough – we're the frame company for you. For most folks our stock sizing works well, so we only do custom geomentry in very select cases.
The SST was originally designed around an air shock, and to keep the weight down that is what we recommend for most riders. That said the leverage curve is quite progressive and coil shocks work great with the frame.
