A groundbreaking 140 or 155mm trail/enduro rig built to pedal all day and destroy descents
OUR LATEST INNOVATION
Passion for big rides in big terrain fuels our desire to build bikes that reward every rider with incredible speed, unparalleled ride feel, and superb fit and finish. The STEEZL is lighter, stiffer, stronger, and dripping with that handmade REEB flavor.
Built to last

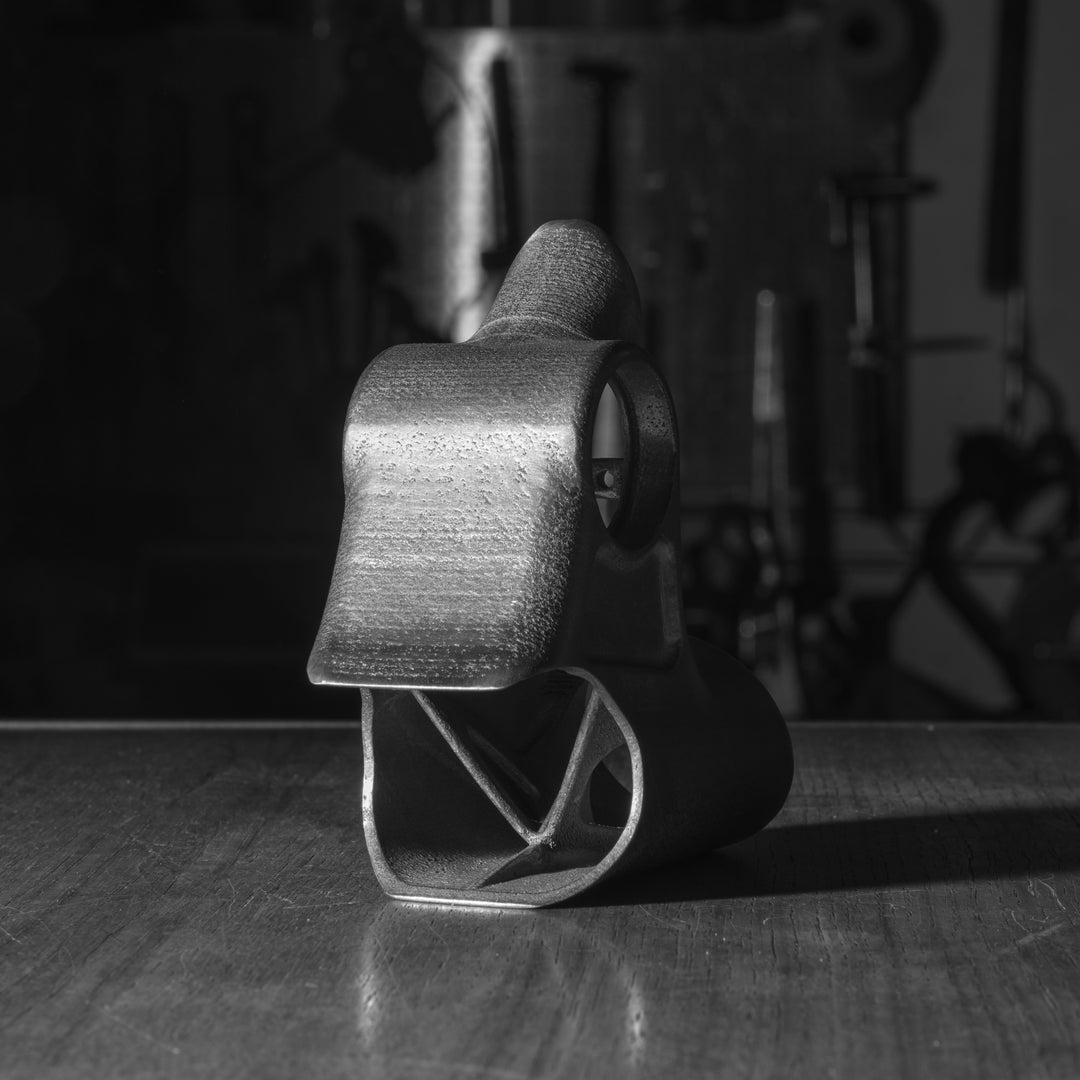

3D printed and laser cut components are combined with REEB's proven fabrication abilities to create an enduro rig designed to pedal all day, destroy technical descents, and last a lifetime. The STEEZL uses technology developed from the SST trail bike and the earth-shaking BREWser to build a bike as light as carbon with the durability and superior ride quality of steel.
IN THE BACK

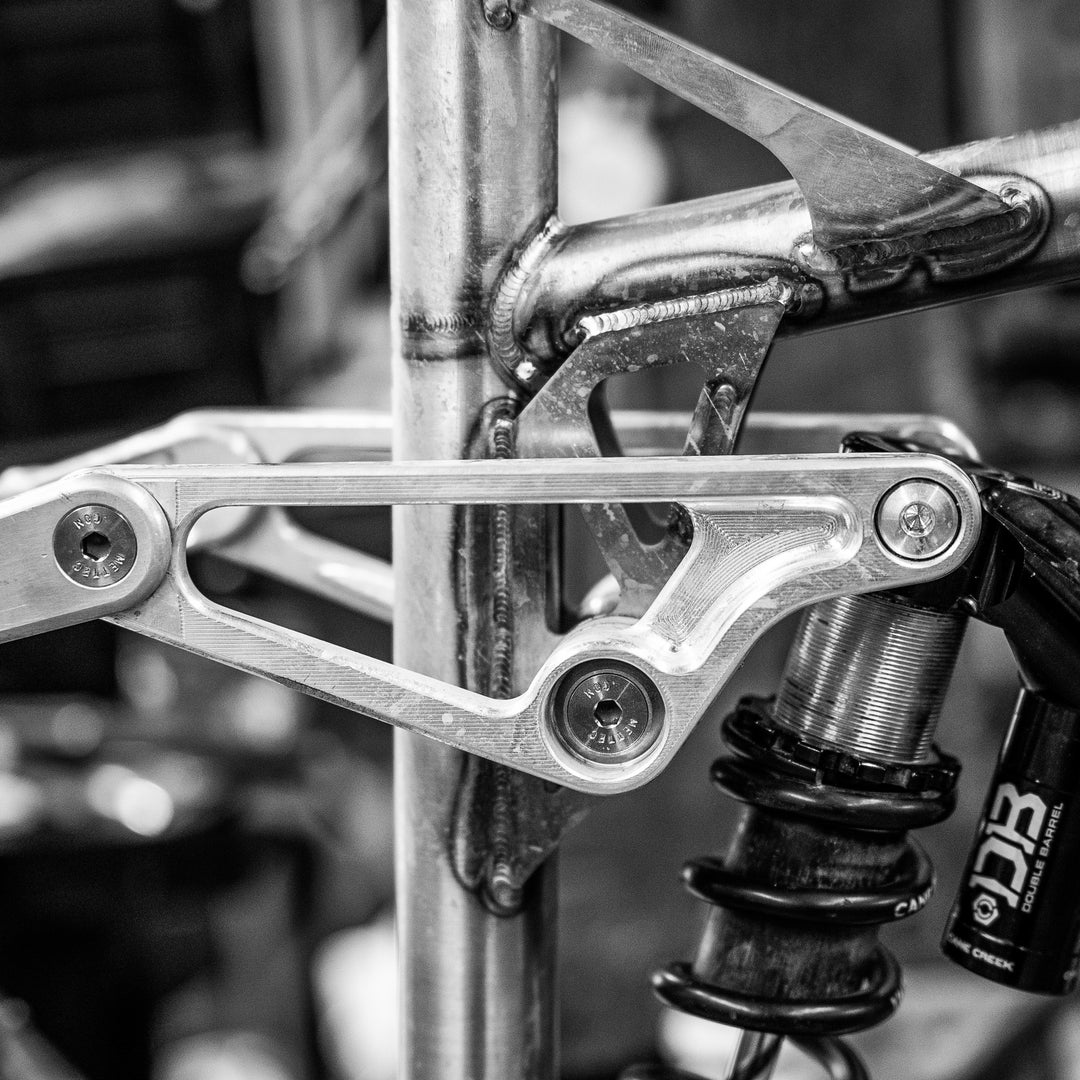

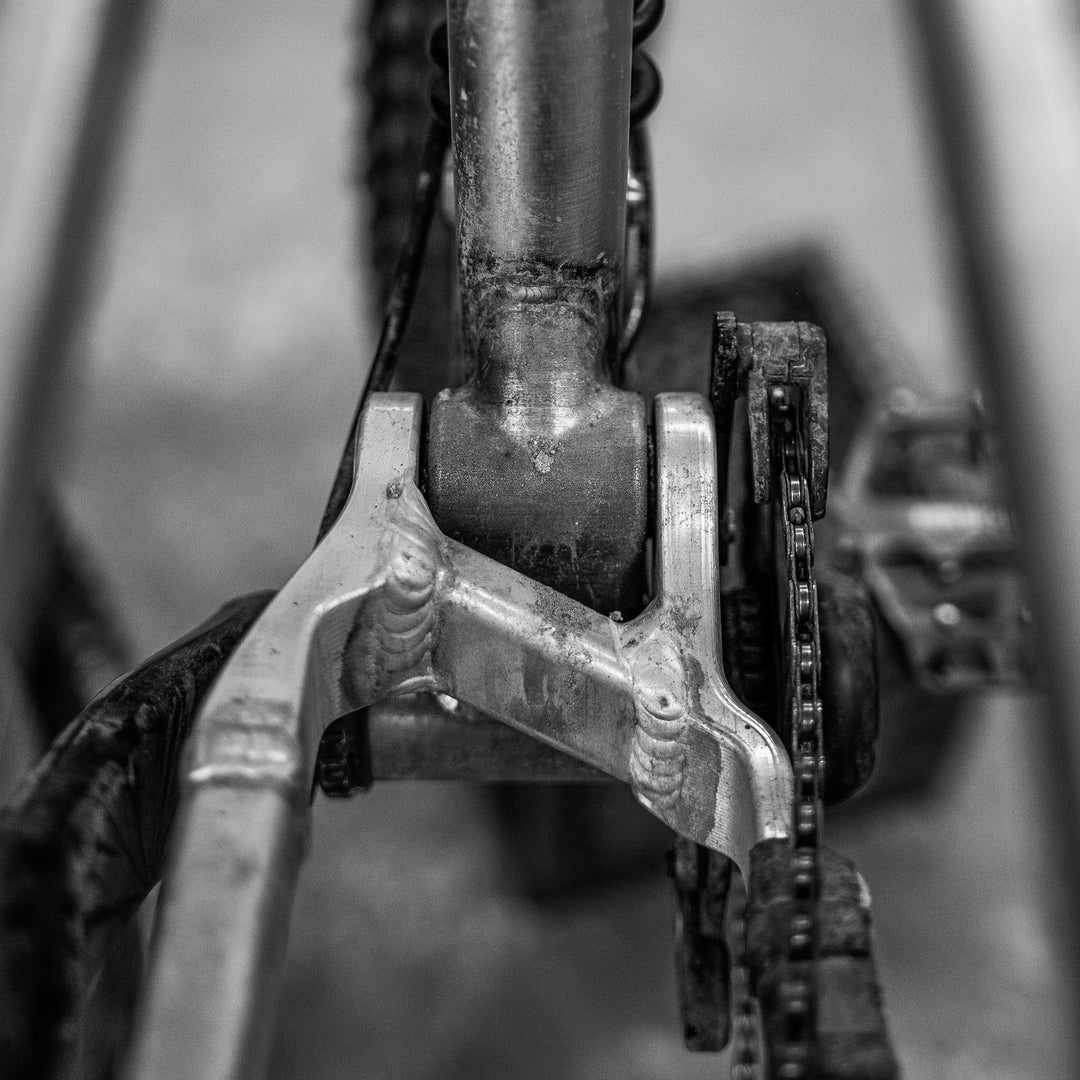

The aluminum Horst-link rear end is the strongest and lightest we've ever made, featuring beautifully CNC’d rockers that use the CRT rocker interface from the SST to keep everything pointed in the right direction through the chunder. Updated kinematics improve pedaling performance, reduce kickback deep in the travel, and are tuned for exceptional performance with coil or high-volume air shocks.
UPDATED GEO
Available in 5 sizes (S-XXL), the STEEZL is ready to run 29er or Mullet with the flip of a chip. To make sure it fits a wide range of riders we've introduced interchangable size-specific chainstays and tighter spacing between sizes that makes it easy to go long-and-stable or short-and-agile. Tell us what you're looking for and we'll help you down the rabbit hole to configure a STEEZL that's perfect for your riding style.
Frame Highlights
- REEB proprietary 4130 Chromoly tubing/3D printed 316L stainless steel/7005 Aluminum, Handmade in Colorado
- 140mm rear travel with 185/55mm Trunnion, Coil or Air, with Short Travel Frame Adapter
- 155mm rear travel with 205/62.5mm Trunnion, Coil or Air
- Designed for 160-170mm forks
- 29/29 or 29/27.5 via flip chip
- Size specific chainstays (434mm S,M,L - 444mm XL,XXL)
- Clearance for up to 29″ x 2.6″ tire
- 148x12mm rear spacing (SRAM UDH)
- 44mm headtube - ZS44 Top/EC44 Bottom headset
- 73mm threaded BB shell
- 31.6mm ø seat post, internal dropper post routing
- Max dropper length: S-180mm / M-210mm / L thru XXL-240mm
- Integrated ISCG tabs
LET's RIDE
BUILD YOUR DREAM BIKE TODAY
Choose one of our stock build kits below or pick the custom build option and choose every part.
STEEZL GEOMETRY [metric]
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A. Seat Tube (C-T) | 380 | 400 | 420 | 440 | 450 |
| B. Effective Top Tube | 589 | 604 | 626 | 648 | 669.2 |
| C. BB Drop | 25 | 25 | 25 | 25 | 25 |
| D. Head Tube Angle | 64° | 64° | 64° | 64° | 64° |
| E. Head Tube Length | 95 | 100 | 110 | 120 | 130 |
| F. Effective Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| G. Standover | 738 | 740 | 740 | 740 | 740 |
| H. Chain Stay Length** | 434 | 434 | 434 | 444 | 444 |
| I. Front Center | 784 | 801 | 825.6 | 850 | 874 |
| J. Reach | 445 | 460 | 480 | 500 | 520 |
| K. Stack | 619 | 623.5 | 632.5 | 641.5 | 646 |
| L. Wheelbase | 1221 | 1236 | 1260 | 1295 | 1319 |
| M. Shock Eye to Eye (Trunnion) | 205x62.5 | 205x62.5 | 205x62.5 | 205x62.5 | 205x62.5 |
- All measurements with 160mm fork, 576mm A-C, 44mm offset
- **Two chainstays lengths available 434mm or 444mm
FAQs
It's great both ways! Coil will give you a more planted feel and grip for days. Air shocks are lighter and a little more playful. Either way you can't lose.
Easy! Choose your suspension preference, coil or air and place your deposit. We always follow up your order with an email to lock in your final build. Specify that you'd like your bike built in the 140mm configuration and you're good to go!
Yes! Stock bikes are spec'd according to the geo chart above but shoot us an email to figure out what configuration will work best for you.
No. We want your STEEZL to last a long time. Our powder coat provides a durable finish that protects the frame from corrosion and will keep you looking good for years to come.
Steel is in our DNA. By using 3d printed and laser cut parts along with our proprietary try blend of tubes we’re able to manufacture bikes that have a special ride quality you won’t find with other materials. We handcraft every STEEZL to have some of the tightest tolerances in the industry, combined with steel’s long fatigue life and ability to take some bumps and bruises on the trail that means more time riding and less time servicing.
Rear shock Sag recommendation:
STEEZL 155 - 30% - 18.5mm
STEEZL 140 - 27% - 15mm
Torque specs:
Main Pivot 35Nm
Rocker Pivot 30Nm
Seatstay/Rocker pivots 25Nm
Chainstay/Seatstay pivots 25Nm
Shock mount bolts 15Nm
Bearings:
Install with the black seal side facing outboard!
Main Pivot - Enduro Bearing 7903 2RS MAX (QTY 2)
Rocker Pivot - Enduro Bearing 7903 2RS MAX (QTY 2)
Seatstay - Enduro Bearing 6900 LLU MAX (QTY 2)
Chainstay - Enduro Bearing 6900 LLU MAX (QTY 2)
Trunnion - Enduro Bearing DR 10177 2RS Max (QTY 2
