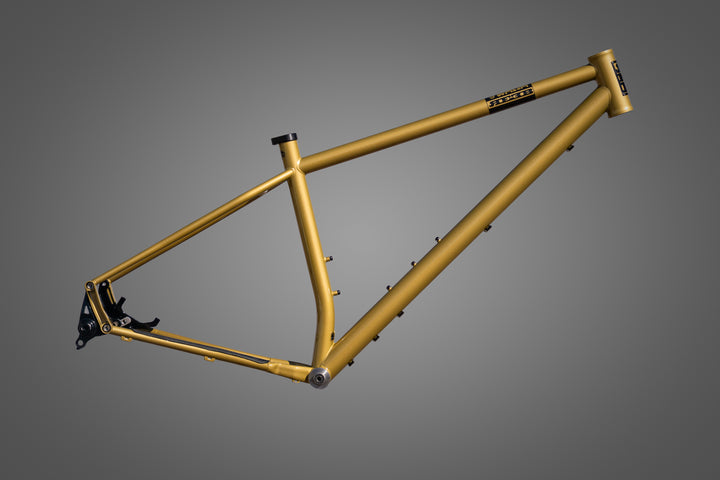

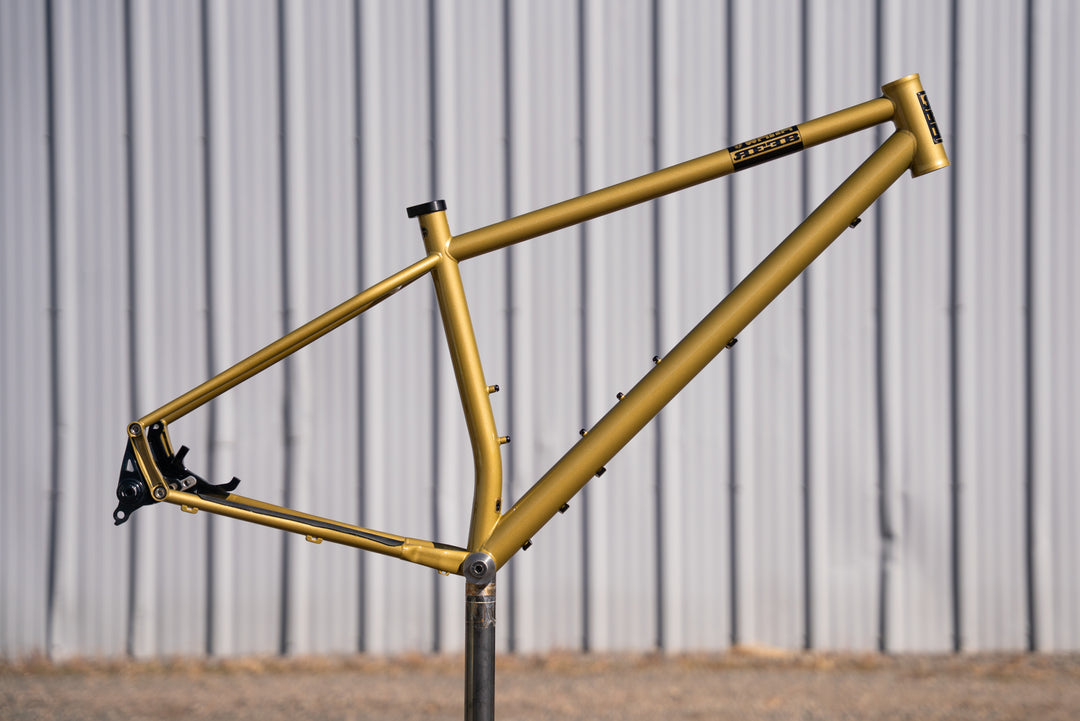

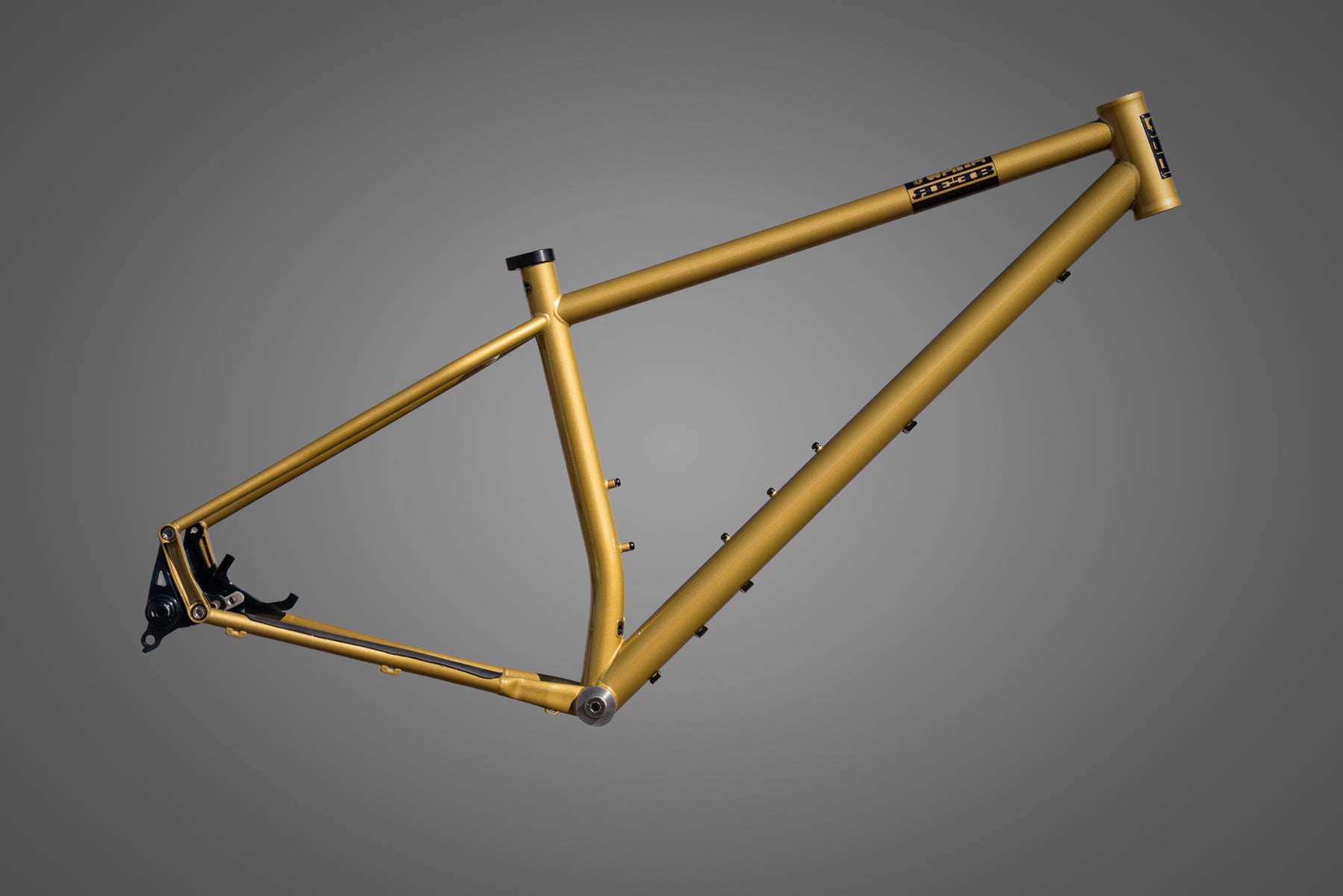

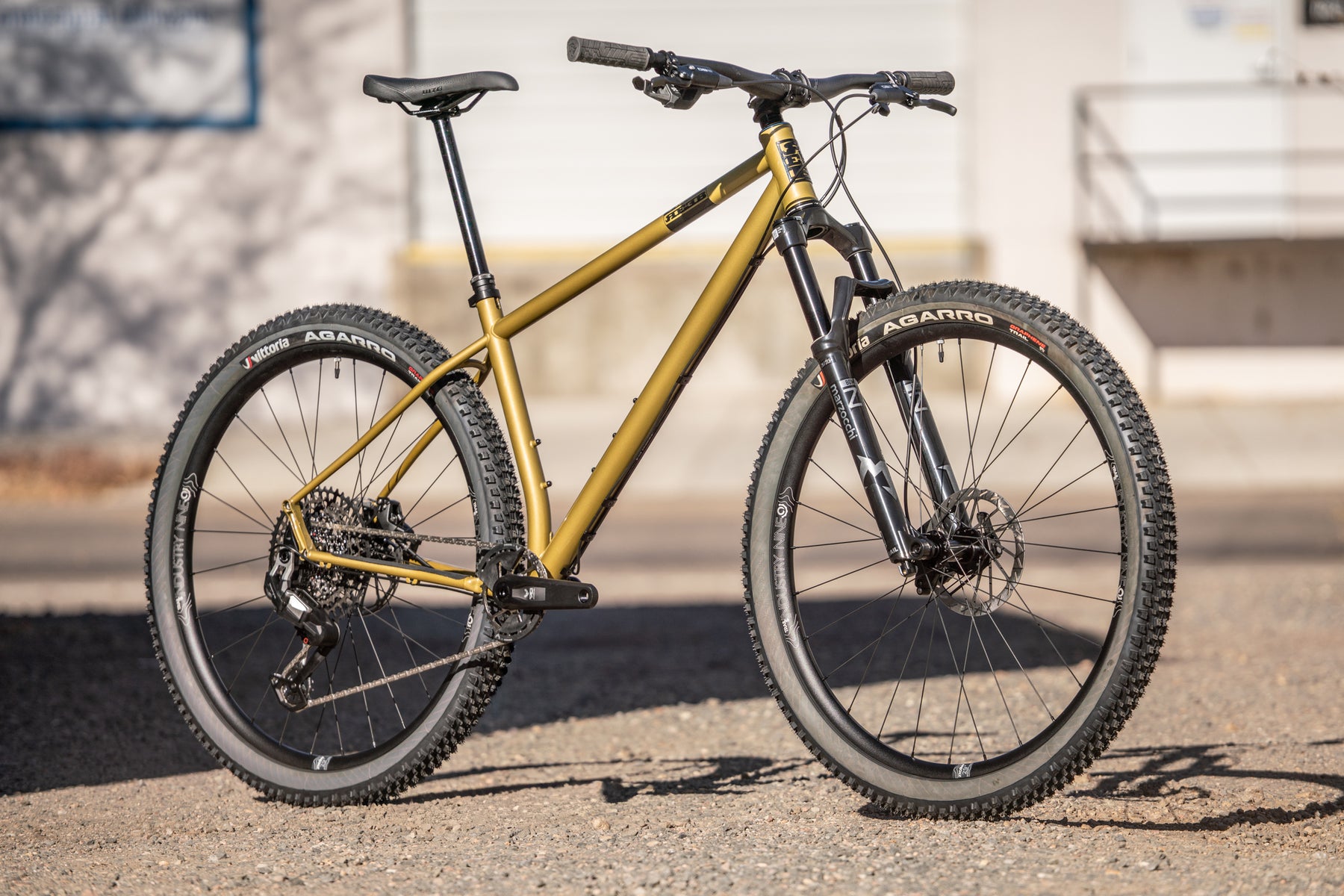

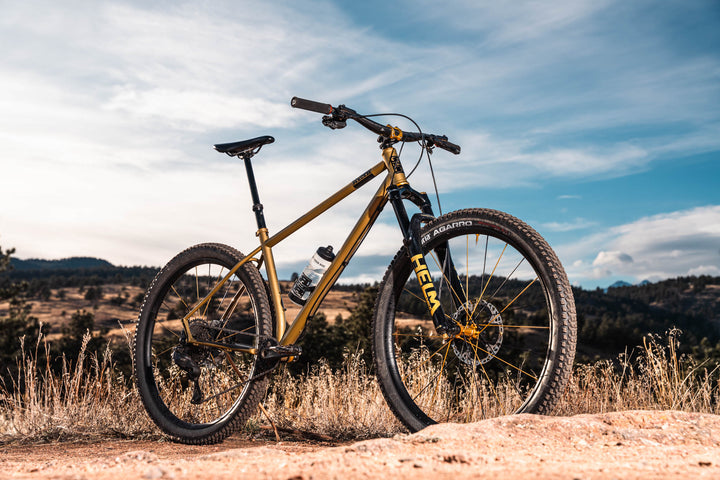

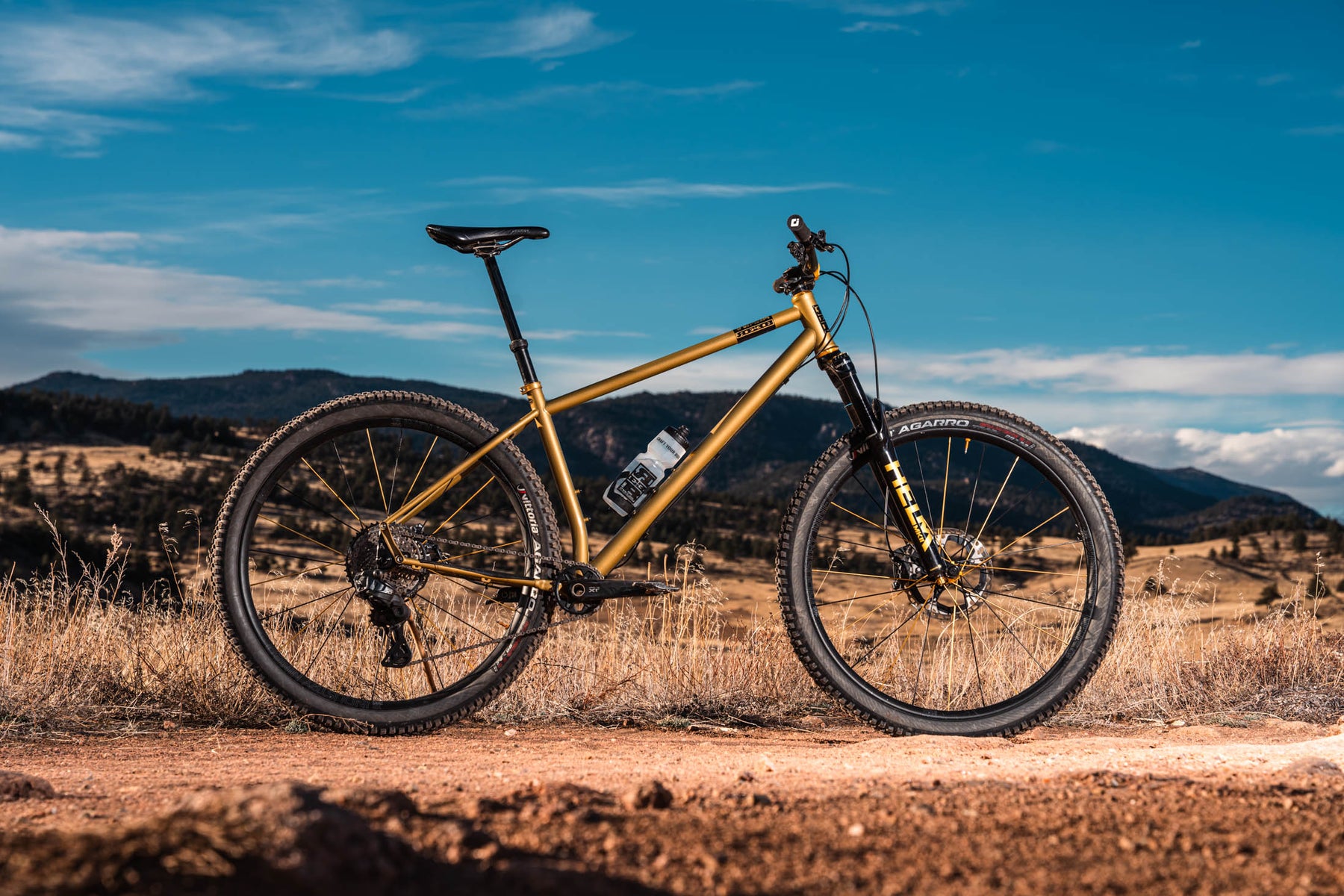

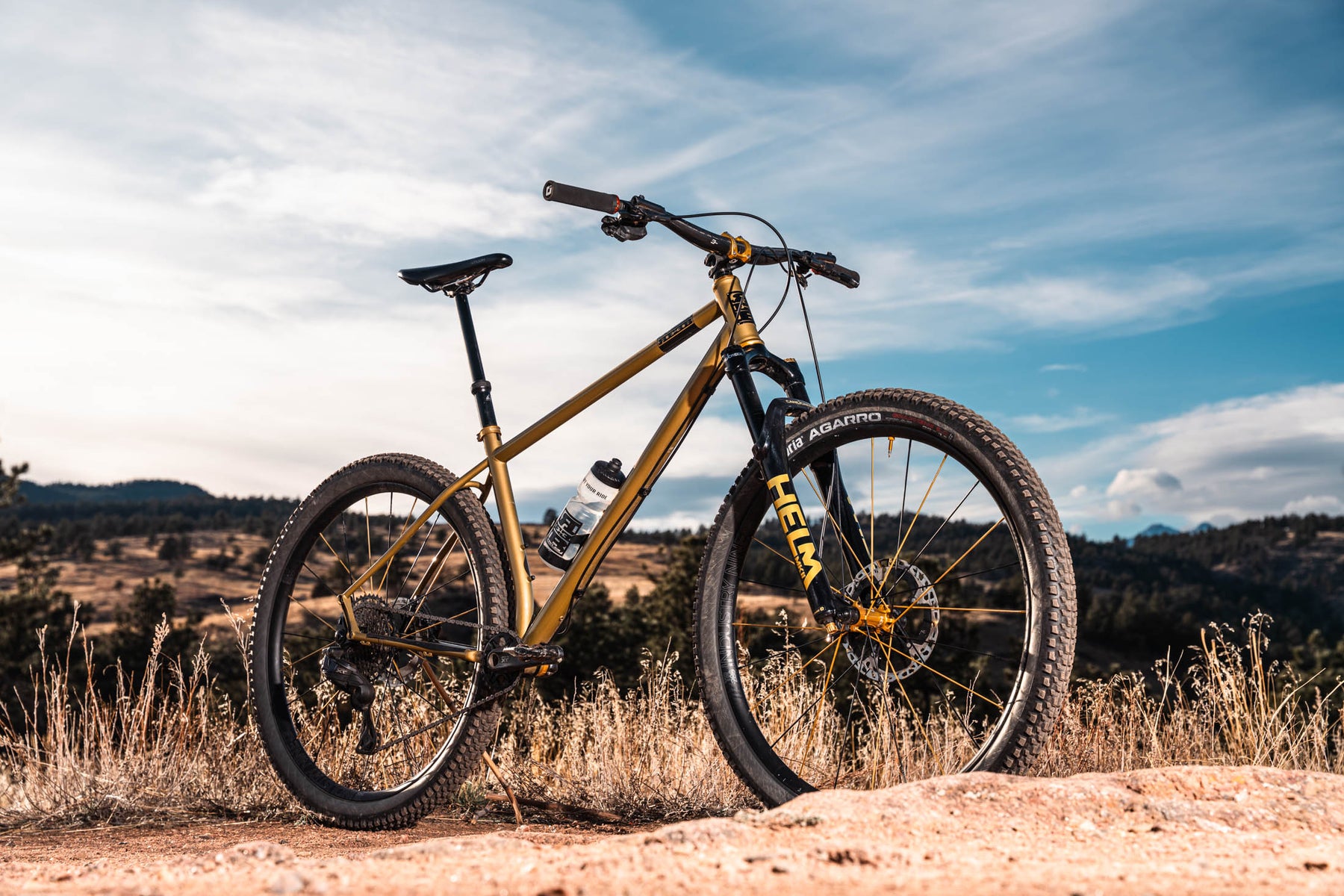

Hall Pass
We started testing bikes right outside our front door at Hall Ranch in Lyons, CO over 15 years ago. The Hall Pass represents everything we’ve learned about building capable hardtails, refined into a more affordable package.
Hand-built in Taiwan, this REEB is ready for whatever you throw at it and still leaves you with some beer money left in your pocket.
All Steel

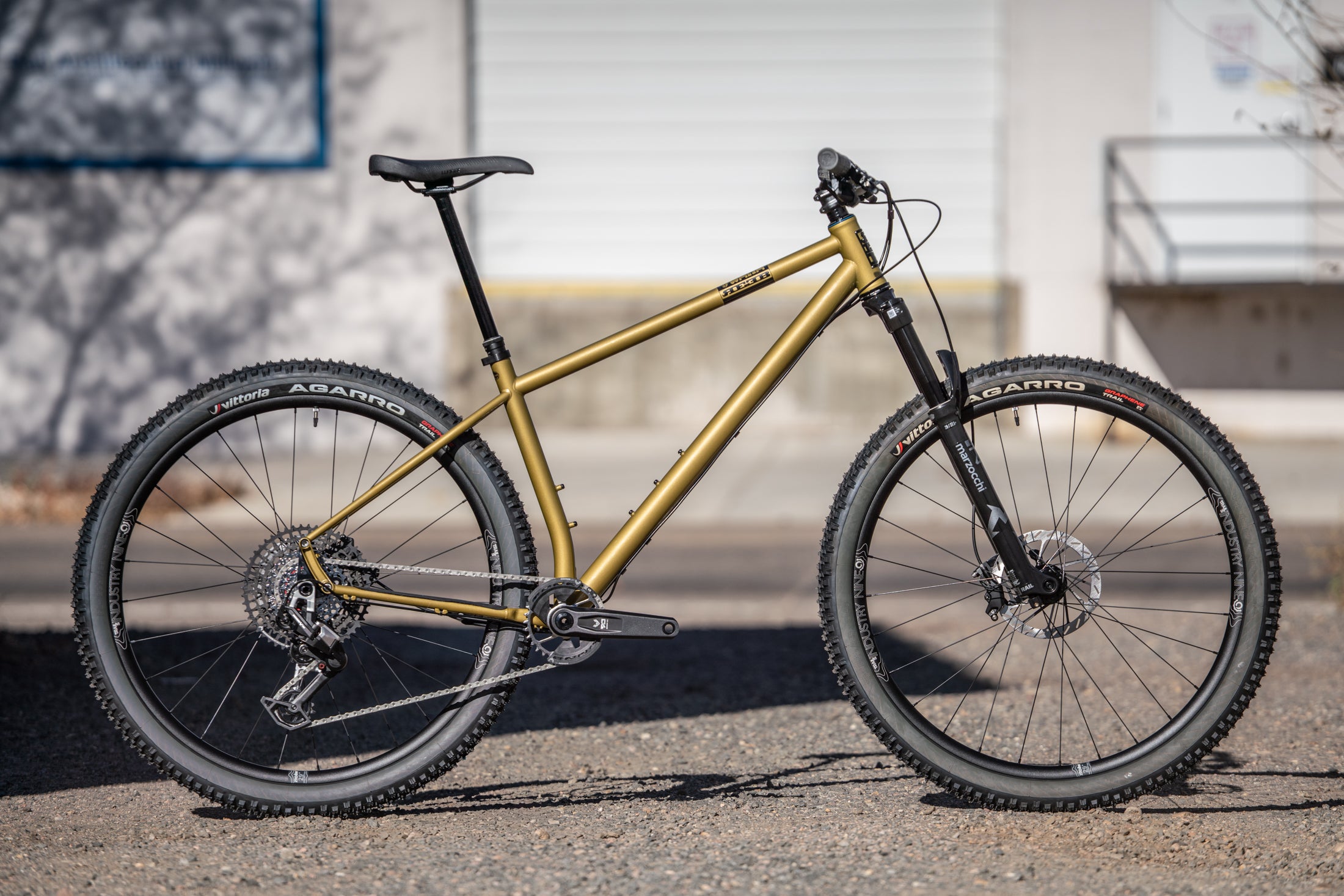

The Hall Pass is handbuilt in Taiwan featuring custom drawn double butted tubeset to provide a compliant durable ride, 3D printed chainstay yokes for light weight and stiffness and with internal ED coating to prevent corrosion.
Updated Geo
Built around a 130mm fork, with a 65.5 degree headtube and 75 degree seat tube angle, this geo will have you dissecting trails with precision. The front triangle has loads of stand over with room to accommodate 2 water bottles or frame bags.
Versatile

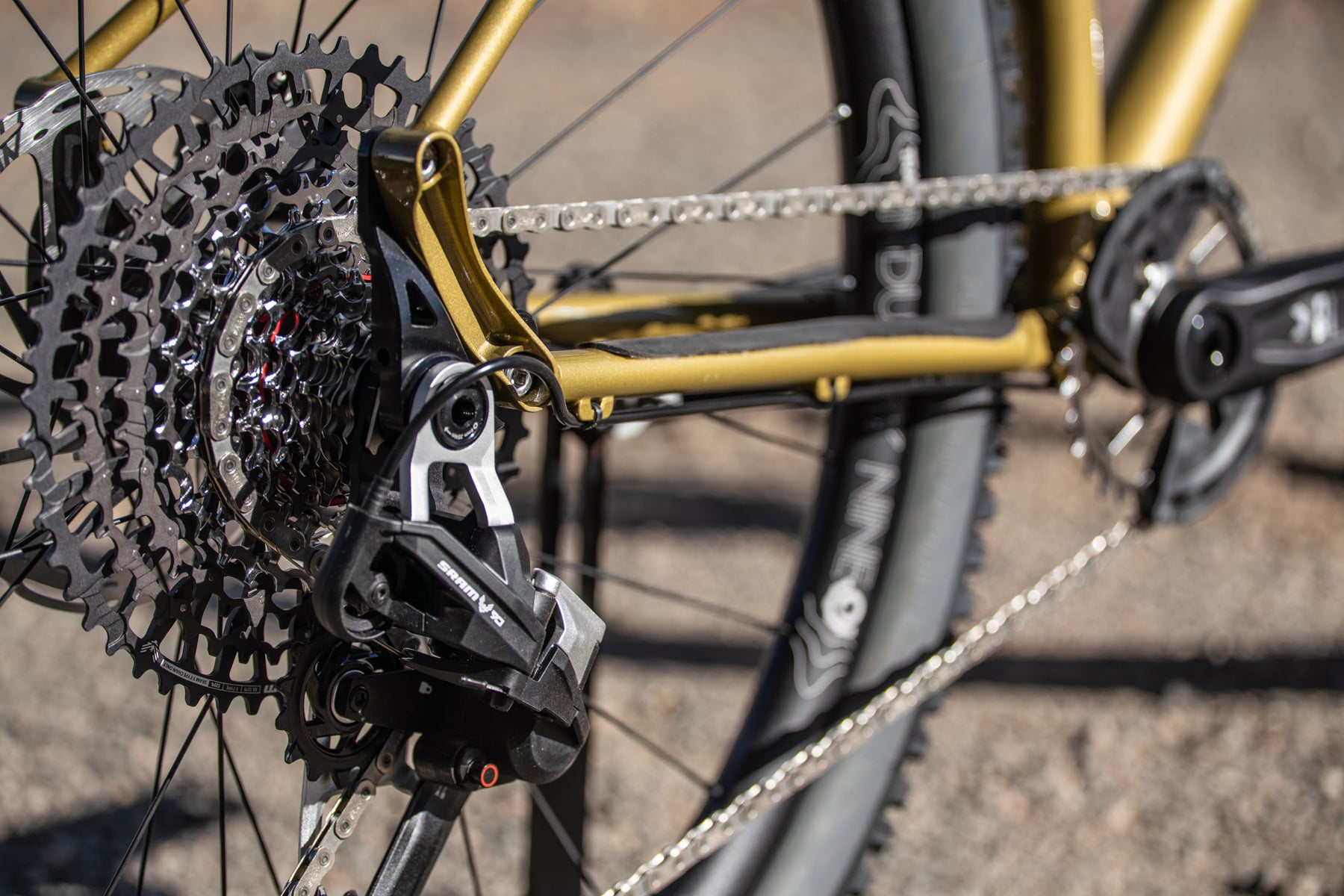

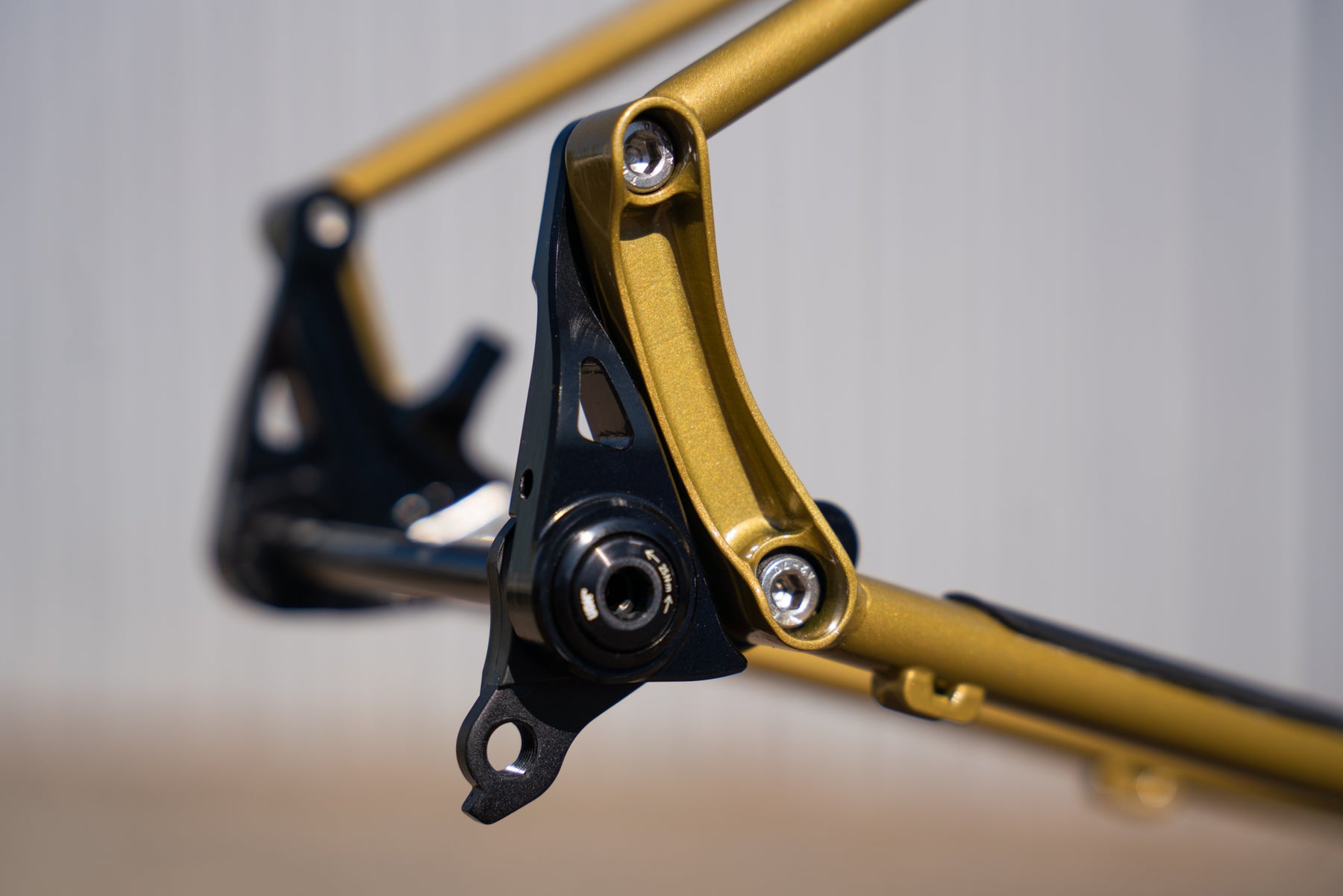

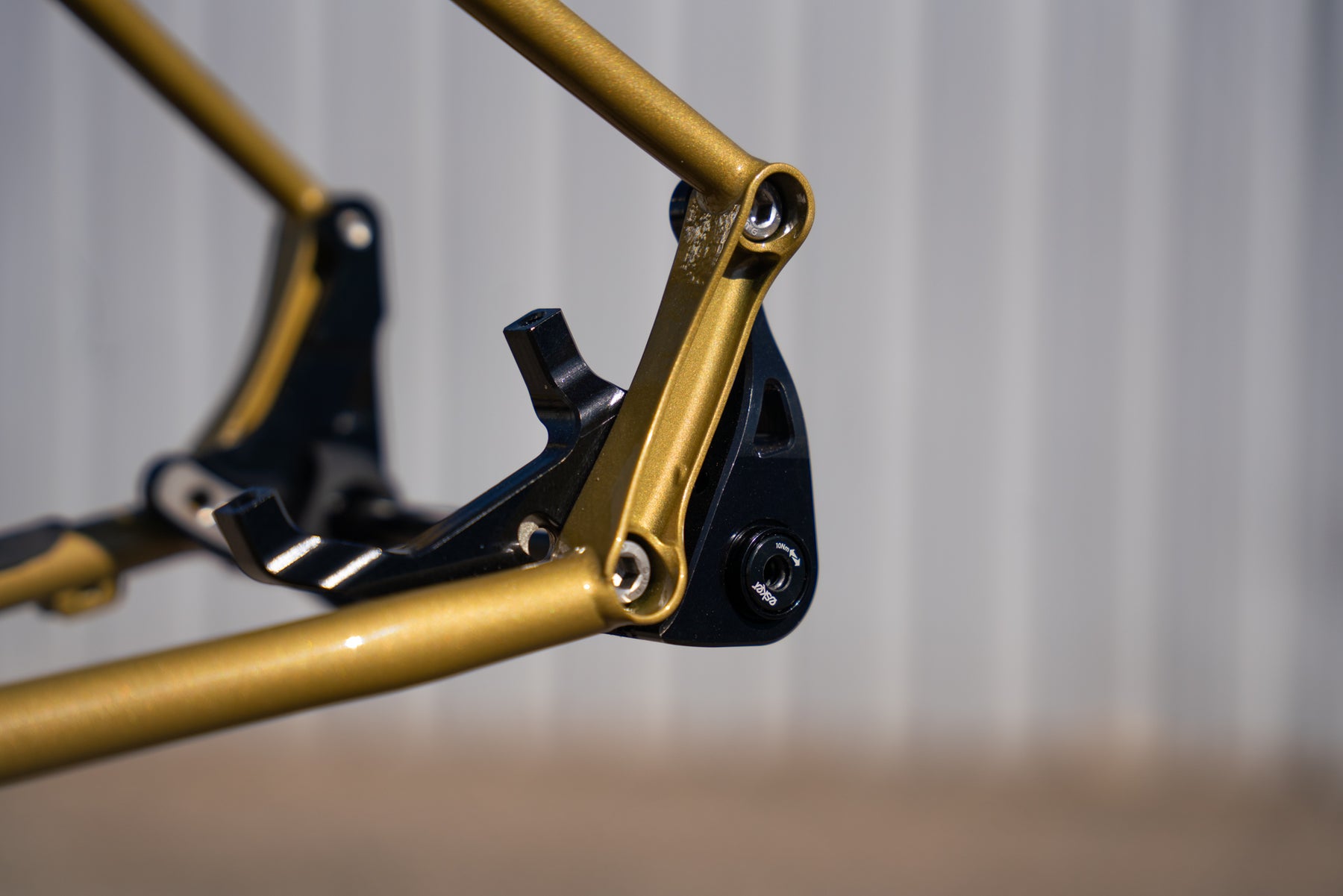

The Hall Pass features the Portage Dropout System. UDH and Single Speed compatible with up to 15mm of chainstay adjustment, native 180mm post mount. Nimble or stable, the choice is yours.
Build kits
Hall pass GEOMETRY [metric]
| S | M | L | XL | |
|---|---|---|---|---|
| A. Seat Tube (C-T) | 405 | 435 | 450 | 465 |
| B. Effective Top Tube | 594.5 | 617 | 640.5 | 663 |
| C. Reach | 425 | 445 | 465 | 485 |
| D. Stack | 632.5 | 641.5 | 655.5 | 664.5 |
| E. Effective Seat Tube Angle | 75° | 75° | 75° | 75° |
| F. Head Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° | G. Chain Stay Length | 420-435 | 420-435 | 420-435 | 420-435 |
| H. Head Tube Length | 95 | 105 | 120 | 130 |
| I. Fork Axle to Crown Length | 540 | 540 | 540 | 540 |
| J. Fork Offset | 44 | 44 | 44 | 44 |
| K. BB Drop | 60 | 60 | 60 | 60 |
| L. Wheelbase | 1150-1164 | 1174-1188 | 1200-1214 | 1224-1238 |
- All measurements with 130mm fork, 540mm A-C, 44mm offset
Frame Highlights
- Handmade in Taiwan
- Custom drawn REEB 4130 Chromoly tube blend

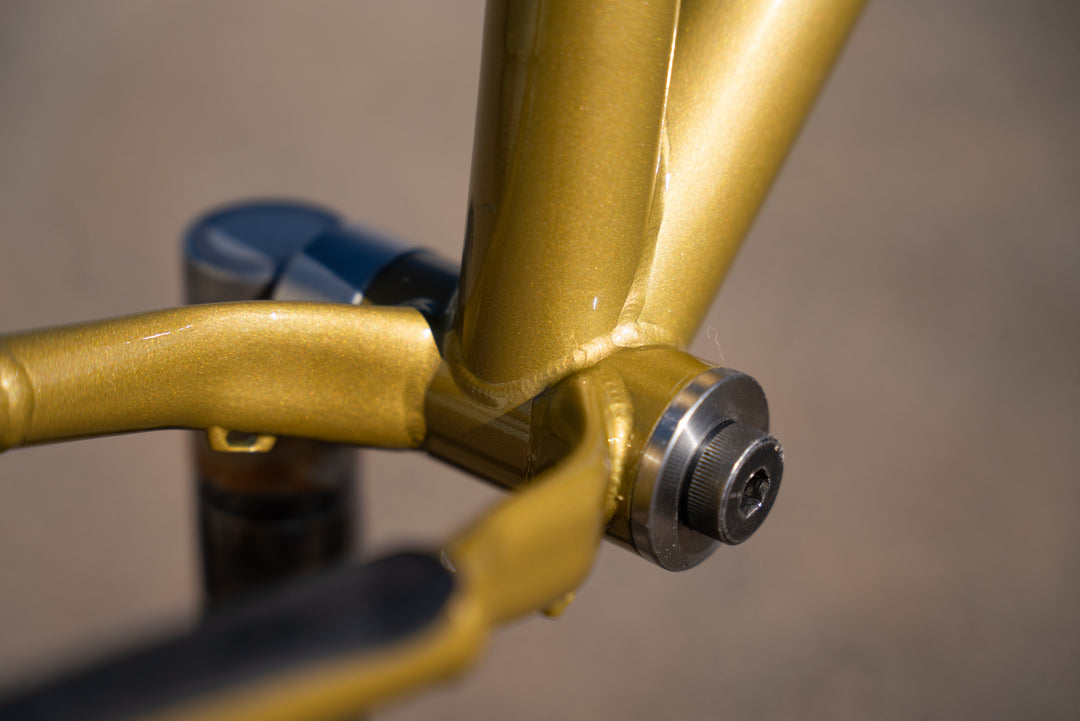

- REEB proprietary 3D printed 316L stainless chainstay yokes
- Designed for 130mm fork
- Singlespeed or UDH Compatable
- Chainstays adjustment 420-435mm
- Clearance for up to 29″ x 2.6″ tire
- 148x12mm rear spacing (SRAM UDH)

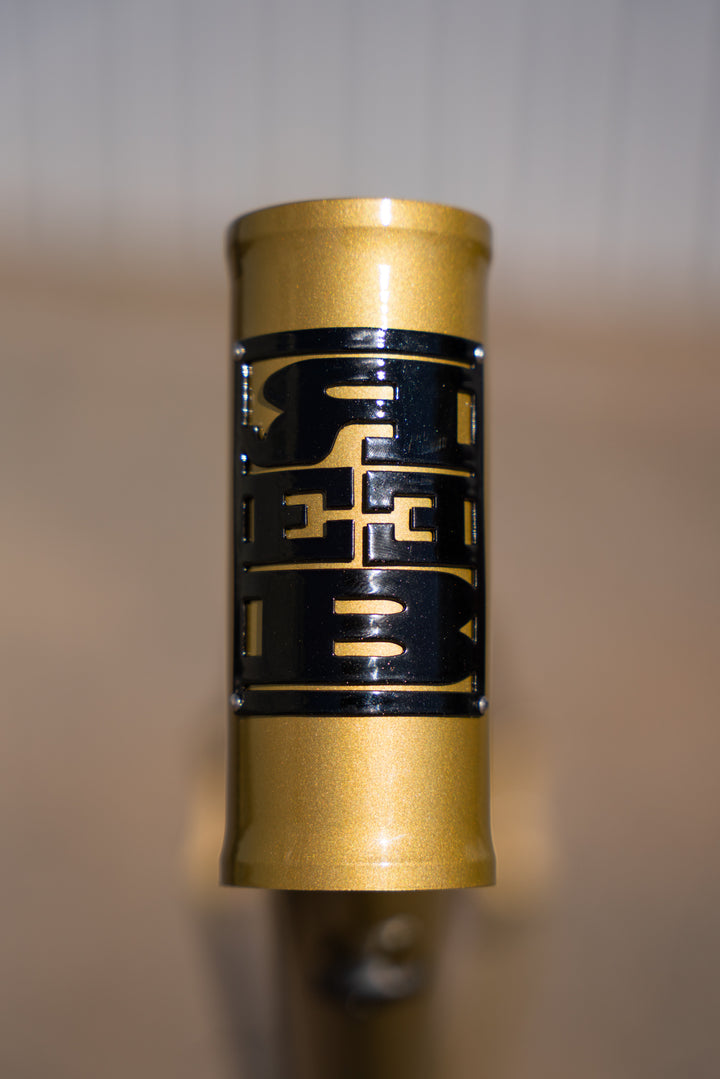

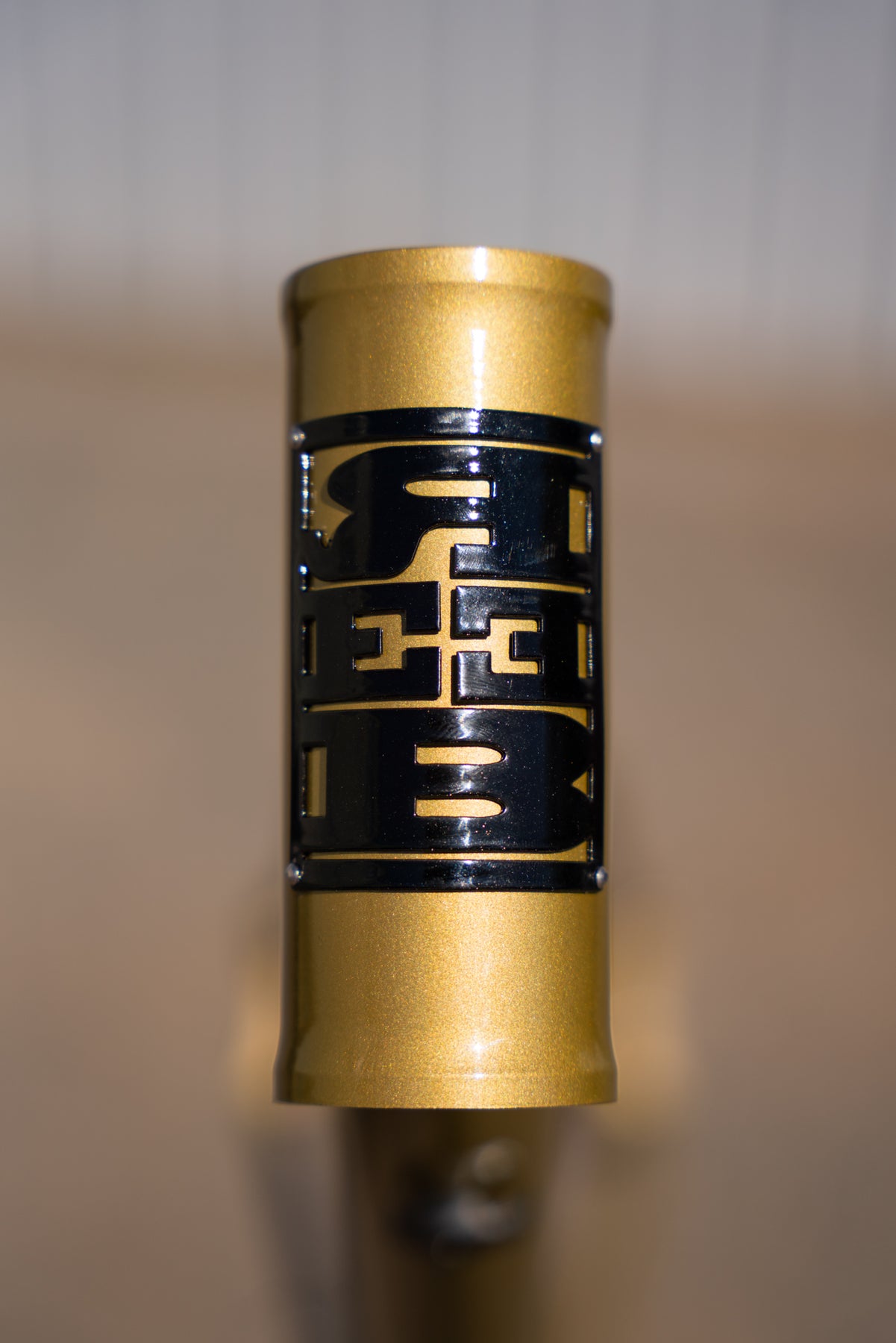

- 44mm headtube - ZS44 Top/EC44 Bottom headset
- 73mm threaded BB shell

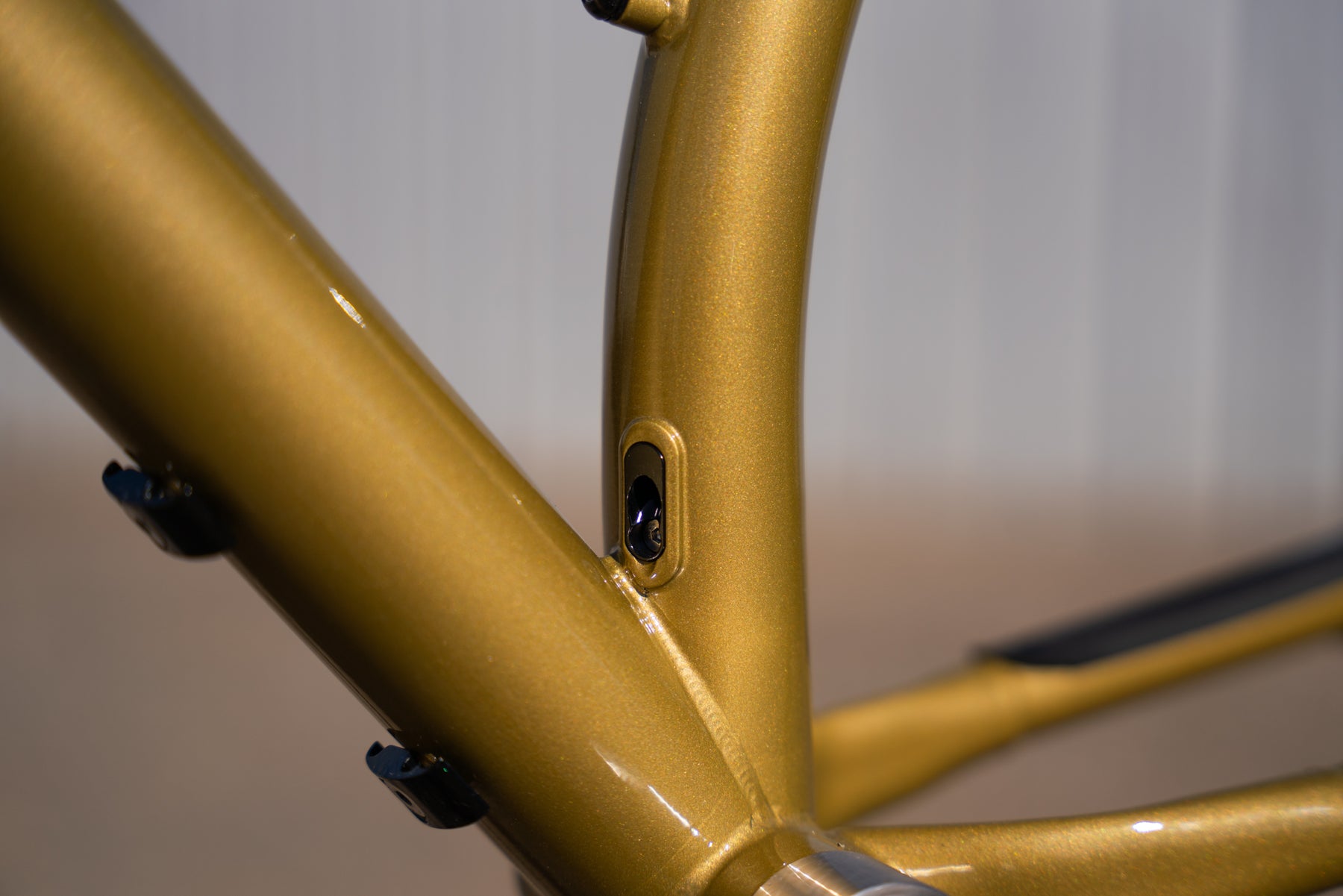

- 31.6mm ø seat post, semi internal dropper post routing
- Max dropper length: S-180mm / M-210mm / L thru XL-240mm
STOCK COLORS

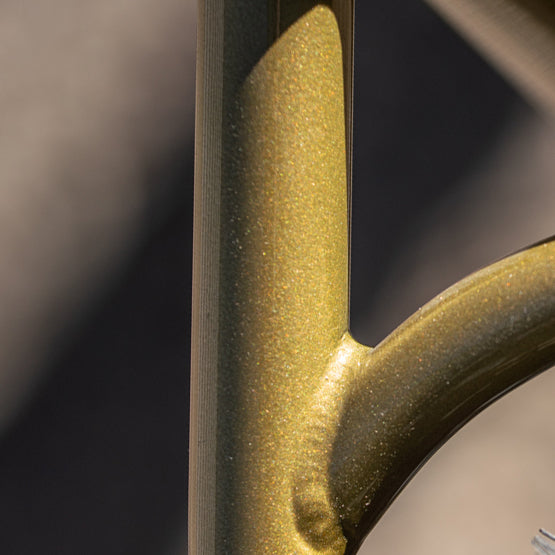

Pilsner
